Bambu Lab 4-in-1 PTFE Adapter FDM 3D Printer

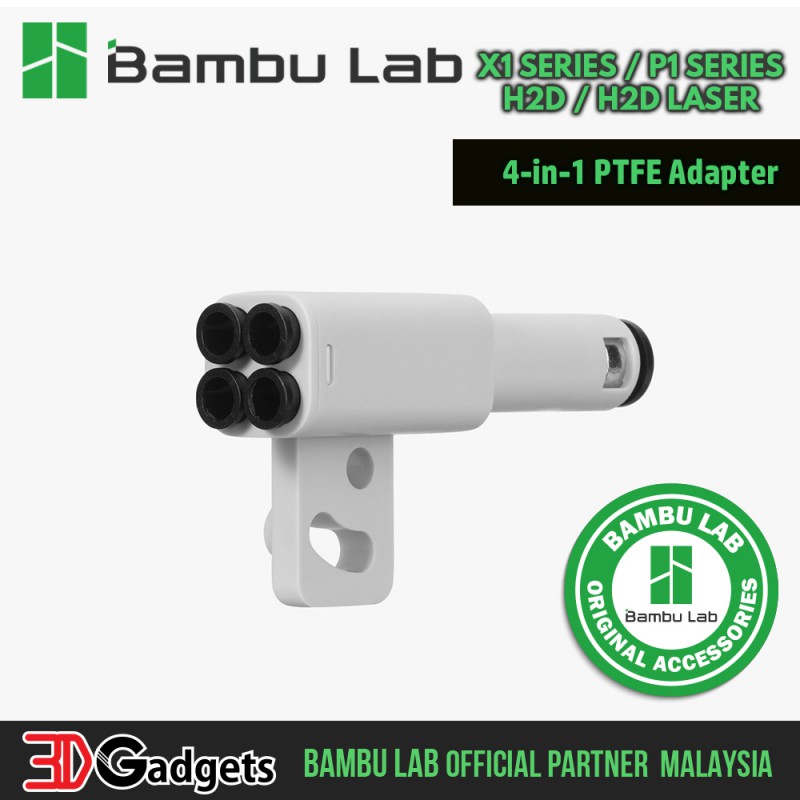

Bambu Lab 4-in-1 PTFE Adapter for X1 Series/P1 Series/H2D/H2D Laser FDM 3D Printer

Overview

The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector, the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and other 3 filaments)

It can help users to connect the printer to AMS along with other filaments which are not compatible with AMS such as TPU 95A, Bambu PET-CF and other brands' carbon-fiber/glass-fiber contained filaments.

Installation

Learn more about the replacement of Bambu 4-in-1 PTFE Adapter on Bambu Lab Wiki.

Compatibility

X1 Series/P1 Series/H2D/H2D Laser

In the Box

Bambu 4-in-1 PTFE Adapter *1

Instructions for use

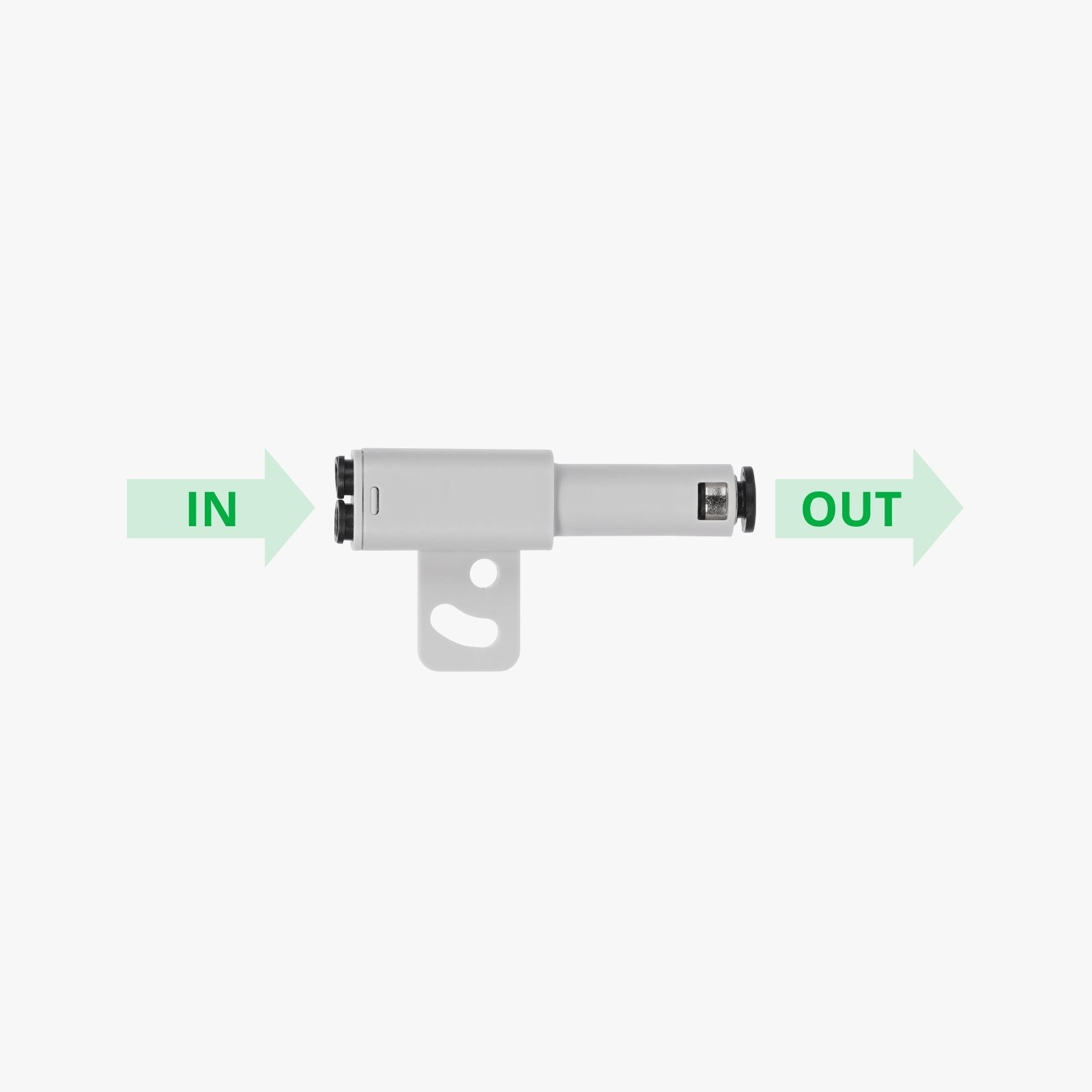

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.

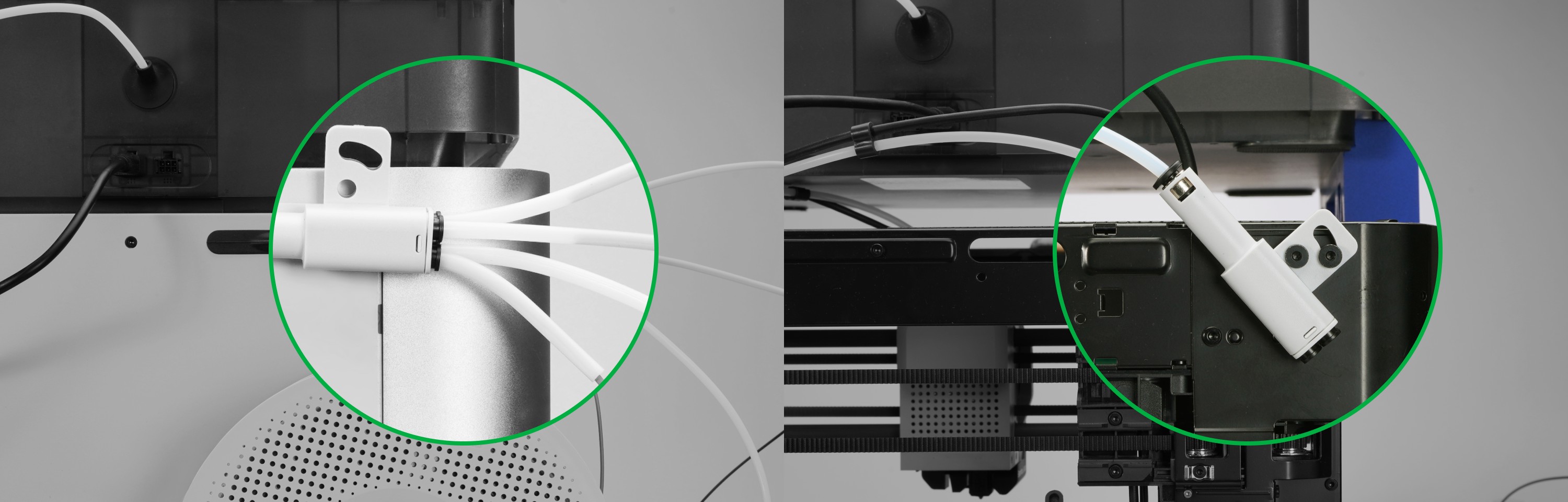

1. When using AMS:

- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.

- Connect the PTFE tube from the buffer output to one of its IN ends. - Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

2. When the AMS is not being used:

- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.

- Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
