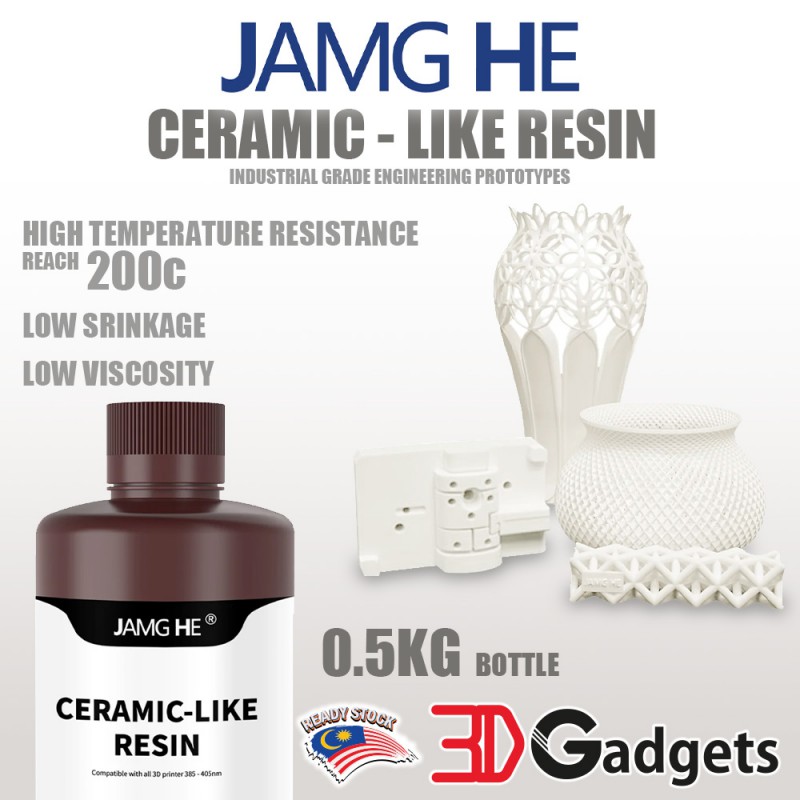

Jamg He Ceramic - Like Resin Photopolymer UV Resin-0.5KG

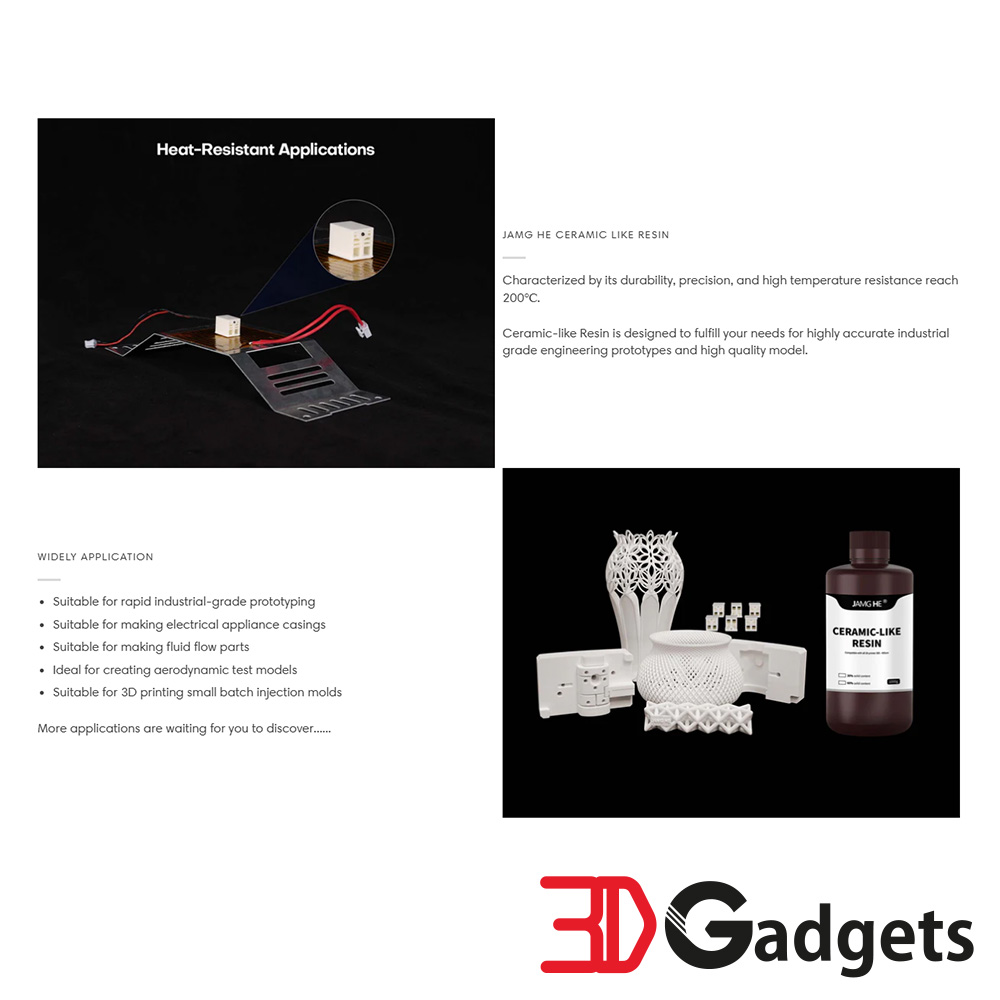

JAMG HE Ceramic-Like Resin is an advanced 3D printing solution engineered to deliver exceptional precision, durability, and high-temperature resistance, withstanding up to 200℃. This professional-grade photopolymer resin is designed for a wide range of industrial applications, including rapid prototyping, functional part creation, electrical appliance casings, fluid flow components, aerodynamic test models, and small-batch injection molding. Compatible with most LCD, DLP, and SLA 3D printers, it ensures seamless integration into existing workflows, enabling users to achieve highly accurate, resilient, and dimensionally stable prints for demanding engineering and manufacturing needs.

Suggested Exposure Time (Based on 405nm UV)

LCD MONO / DLP

Bottom exposure time: 15 - 20s

Layer Exposure Time: 1.2 - 1.5s

NOTE: The exposure time should be adjusted according to printer light energy, layer height and model structure.

Weight: 0.5KG

Technical Data Specifications:

Maximum force(KGF): 203.5±10%

Tensile strength(MPa): 47.97±10%

Deformation of maximum point of force(mm): 3.94±10%

Elongation at yield point(%): 6.08±10%

Elongation at break(%): 6.9±10%

Maximum bending strength(MPa): 65.44±10%

Flexural modulus(MPa): 2355.41±10%

Hardness(Shore D)：88-93

Impact strength(j/m): 10±10%

Tensile modulus：819.52±10%

Cleaning & Post Curing

Step 1 - Clean with flush water to a container and brush it gently with a soft brush, then dry it with cold air. Ensure it is fully dry.

Step 2- Place the object in the UV Curing Chamber to cure. The curing time is proportional to the volume of the work piece and inversely proportional to the optical power of the curing chamber.

Storage

-Shake well before use, and leave it for 30 minutes to eliminate air bubbles generated from the shaking process.

-Magma Water Washable Photopolymer Resin is packed in opague UV safe bottle for ease of handling and safe storing.

-After use, it should be filtered and keep back in the opague UV bottle on time and placed in a dry and well ventilated place.

-Store in cool and dry place, and avoid sunlight, recommended temperature at 25-30 degrees Celsius.

Package Includes:

1 x Jamg He Ceramic - Like Resin Photopolymer UV Resin 0.5KG
