BIGTREETECH BTT Pad 7 Inch Touch Screen with Pre-Installed CB1 Board for Klipper FDM 3D Printer

BIGTREETECH Pad 7
The BIGTREETECH Pad 7 is a 7-inch IPS touchscreen tablet that is specifically designed for 3D printing enthusiasts. It comes with Klipper and KlipperScreen pre-installed and features a high-quality 7-inch IPS touchscreen. Additionally, it is not only a Klipper screen but also a mini-computer. The built-in CB1 Core Board can be detached and replaced with CM4 to make it a mini-computer.

User manual:
https://github.com/bigtreetech/Pad7/blob/master/BIGTREETECH%20Pad%207%20v1.0%20User%20Manual.pdf

Features:
-Improve print quality and speed. Equipped with an ADXL345 accelerometer, it will help improve printing speed and quality remarkably.

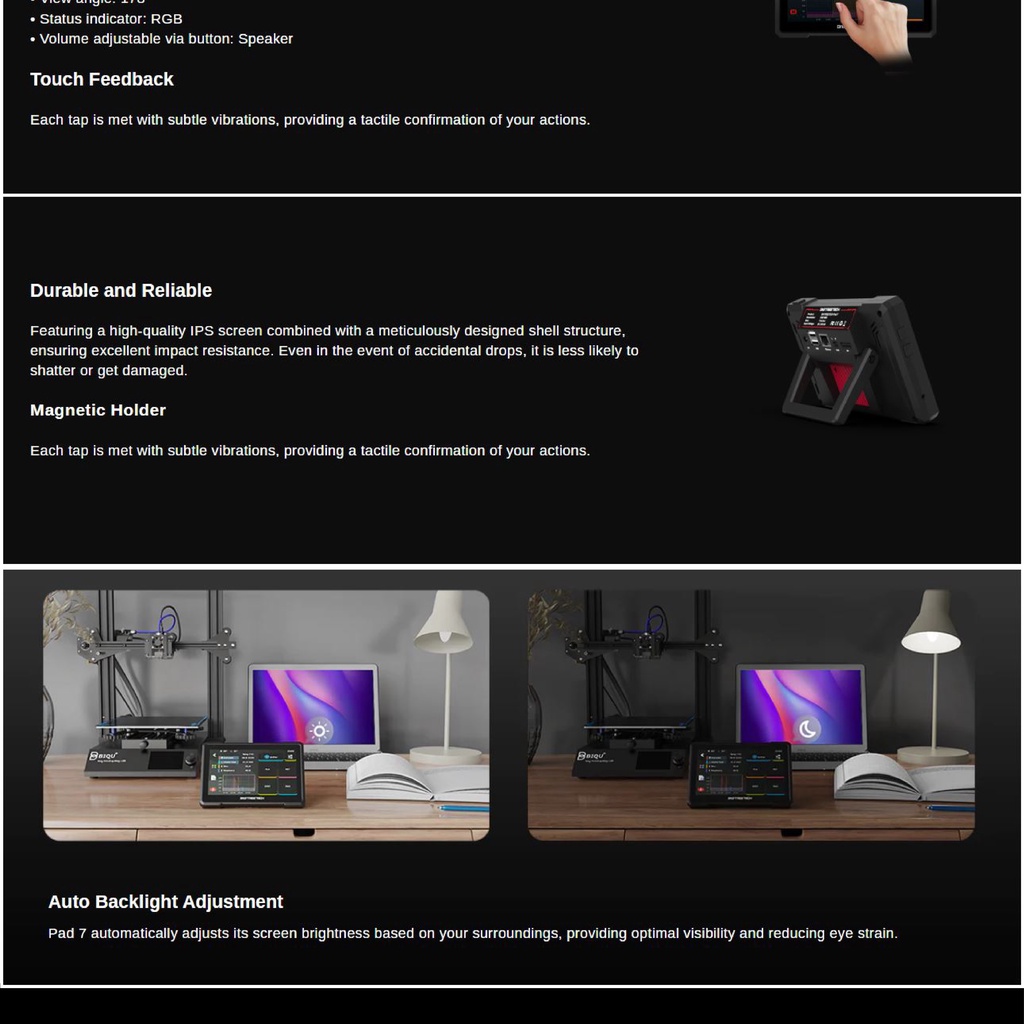

-Adaptive light screen to protect eyes. The brightness of the screen varies according to the brightness of the environment it is in.

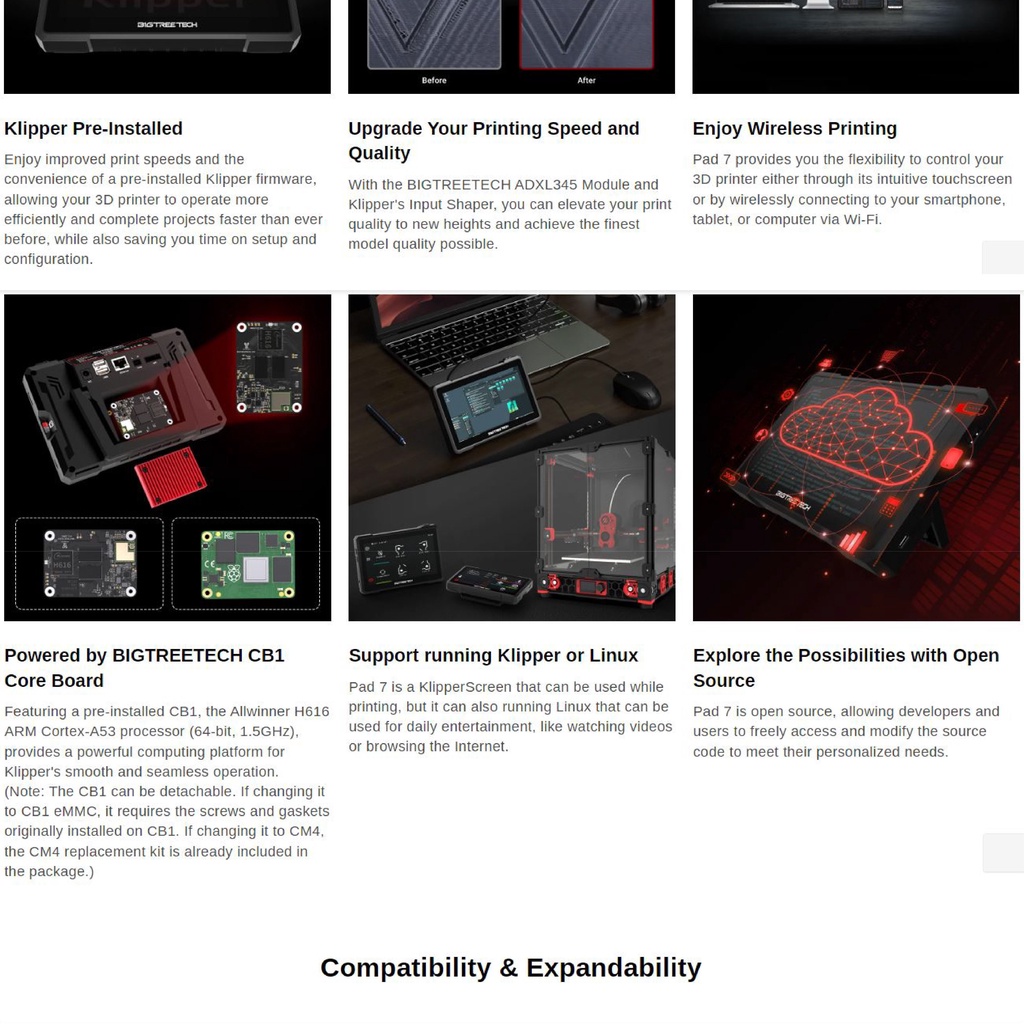

-DIY Friendly, replaceable built-in CB1 core board.

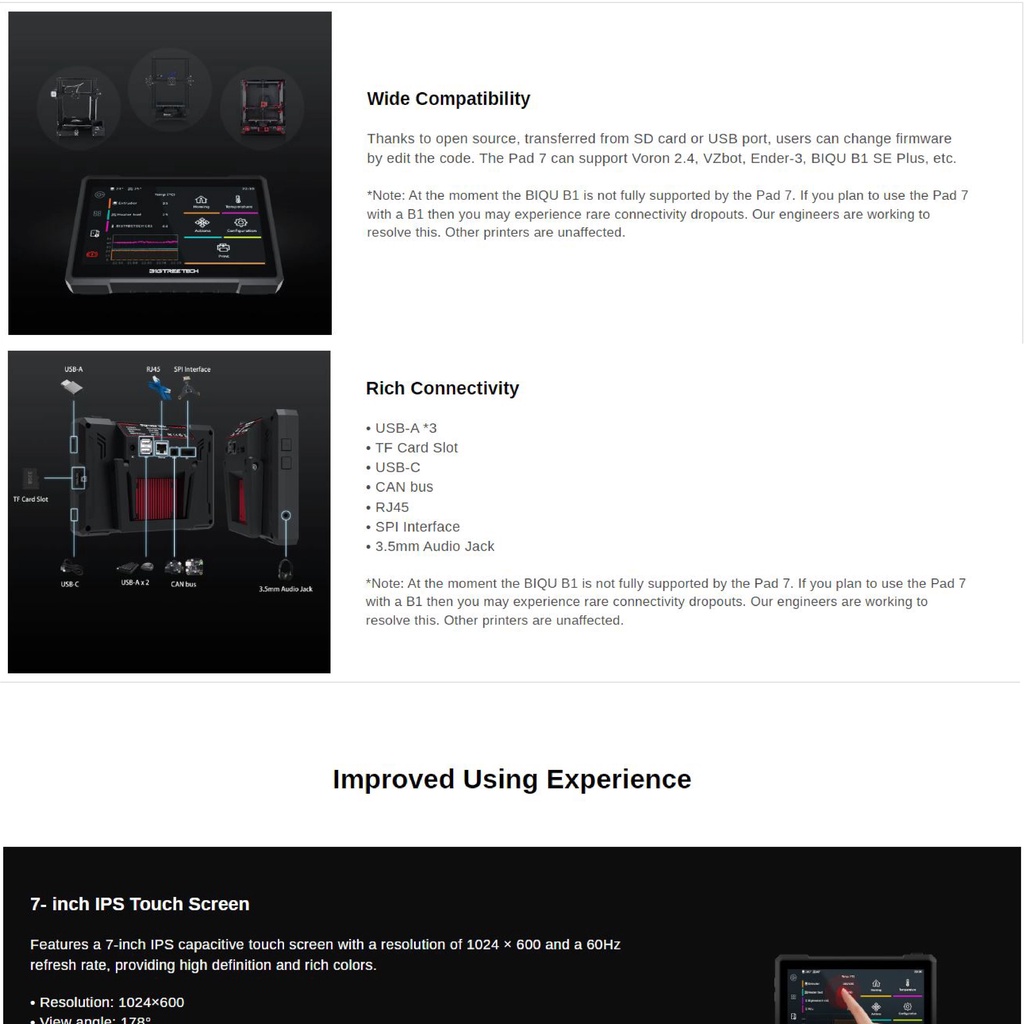

-Various interfaces. The tablet supports various interfaces such as USB 2.0, Ethernet, CAN, and SPI, and comes with a SanDisk 32 GB memory card for storage.
-Wide compatibility. The screen itself can be compatible with almost all FDM 3d printers. In addition, this screen is also compatible with BIGTREETECH SKR, Octopus series motherboards, EBB tool boards, etc.
-Built-in speaker with volume button.
-3.5mm headphone jack for connecting headphones or speakers.

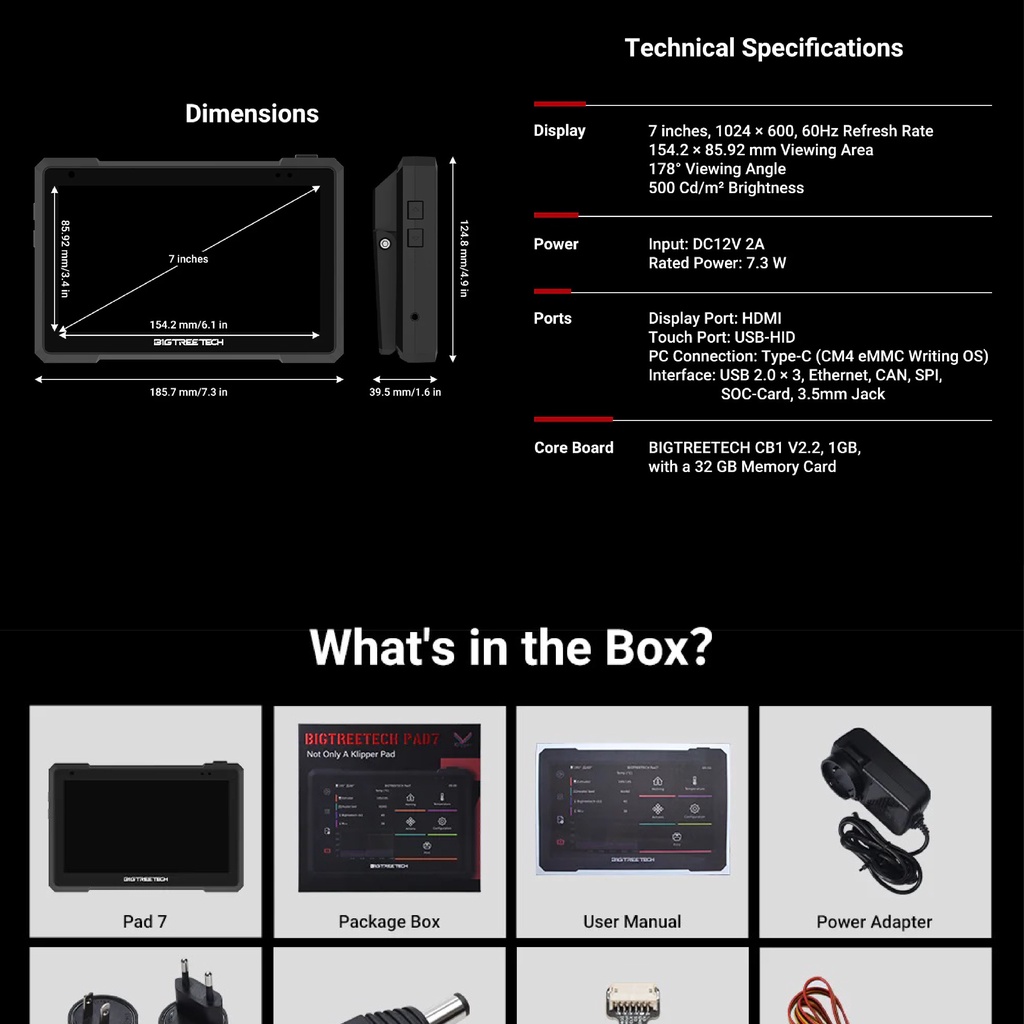

Specification:
Dimensions: 185.7 x 124.78 x 39.5 mm
Display Viewing Area: 154.2 x 85.92 mm
Display: 7 inches, 1024 x 600, 60Hz Refresh Rate
Viewing Angle: 178°
Brightness: 500 Cd/m²
Input: DC12V 2A
Rated Power: 7.3 W
Display Port: HDMI
Touch Port: USB-HID
PC Connection: Type-C (CM4 eMMC Writing OS)
Interface: USB 2.0 x 3, Ethernet, CAN, SPI, SOC-Card
Core Board: BIGTREETECH CB1 V2.2, 1GB, with a SanDisk 32 GB Memory Card

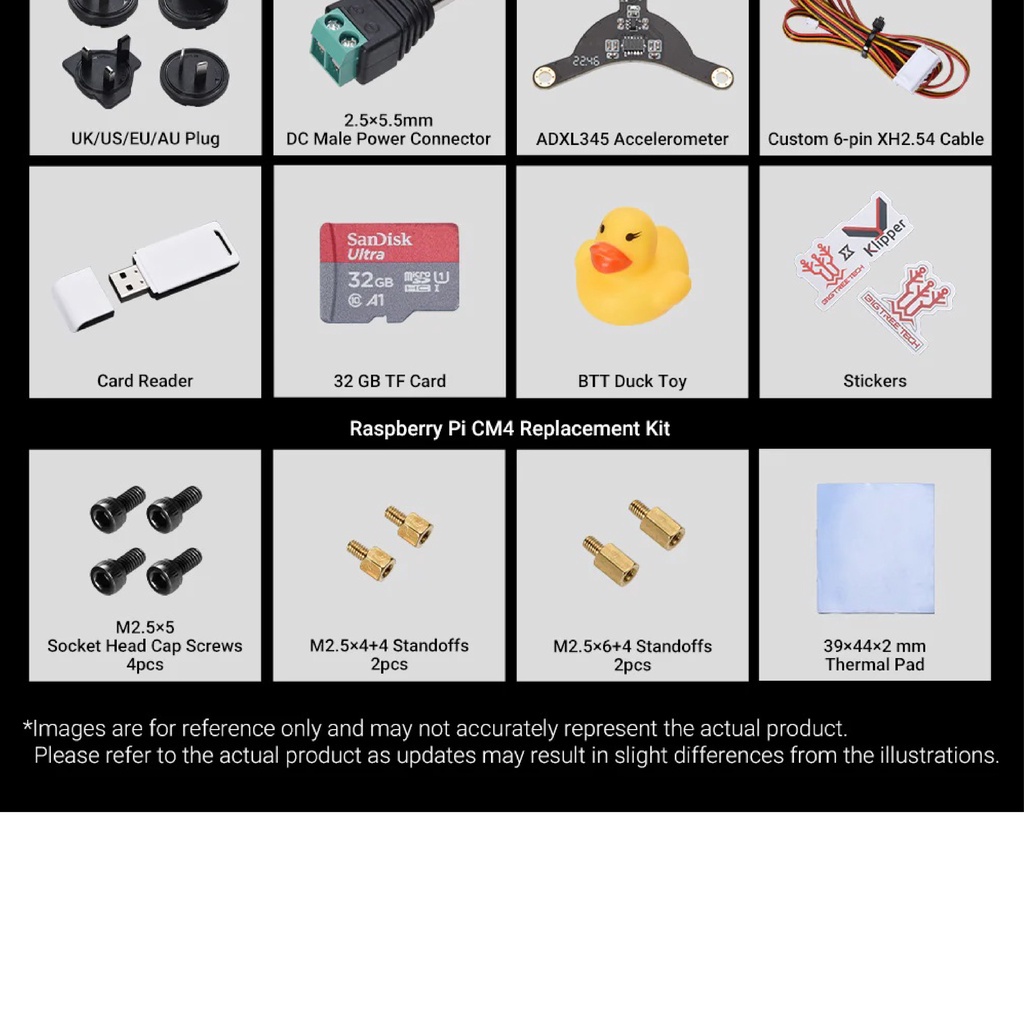

Package Includes:
1 x BIGTREETECH BTT PAD 7



Sold By 3D Gadgets Malaysia
